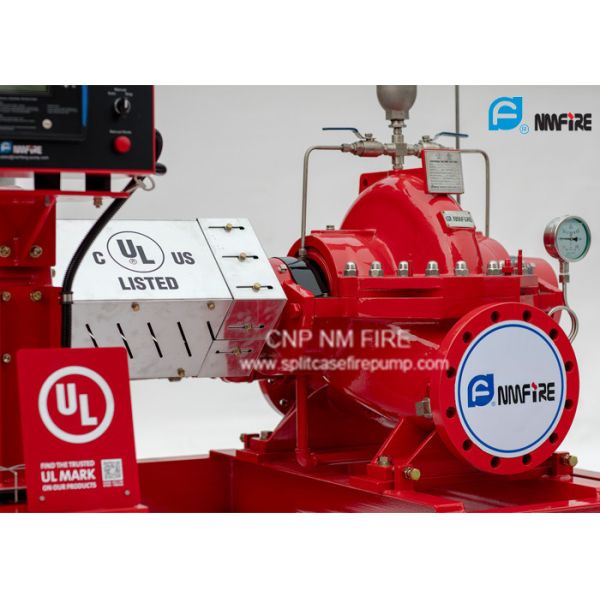

Firefighting Use With UL/FM Approval Diesel Engine Drive Fire Pump With Horizontal Split case Fire Pump On 500GPM
Parameters:
| HEAD |
PUMP MODEL |
SPEED |
MAX SHAFT POWER |
DIESEL ENGINE DRIVER |
| PSI |
FEET |
METER |
RPM |
HP |
KW |
MODEL(NM&UL) |
HP |
KW |
MODEL (DE MAAS&FM) |
HP |
KW |
| 120 |
277 |
84 |
SCF125-80-350
(5x3") |
2980
(50Hz) |
73 |
54.4 |
NM4-90 |
51 |
38 |
IF05AH-F |
81 |
60 |
Performance Ranges:
|
UL:
|
Q: 500-4000GPM |
H:100-190PSI |
|
FM:
|
Q: 500-4000GPM |
H:100-190PSI |
|
CCCF:
|
Q:20-500L/S |
H:0.42-2.0Mpa |
|
NFPA20:
|
Q: 300-8000GPM |
H:60-300PSI |
Application:
Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises, etc.
Special material for sea water pumping is available: Casing , impeller ,shaft ,shaft sleeve, wear ring—SS2205, Seal—Gland packing, Bearing—SKF
Product Type:
Diesel engine driven fire pump group with air cooling & water cooling
NFPA20 Package
Advantage:
First-Class international technical standards
NM Fire is the first member of NFPA from Chinese pump manufacturers .
We are the only enterprise in China that obtained not only UL and FM certificates, but CCCF as well,also the first company in the world who was authorized by UL CCIC as witness testing center for both fire pumps and fire fighting engines.
NM fire obtained fire diesel engine UL1247 and fire pump UL448 witnessed laboratory accreditation,fully proved that the company in terms of hardware and software strength,are to meet the
strict requirements of UL certification.
Service:
1 . Any inquiries will be replied within 24 hours.
2 . Dedicated to high quality, stable supply and considerate service.
3 . Provide full set of documents as customer’s requirements.
4 . Customiszed production for different package
